Porsche 356 / Electrical

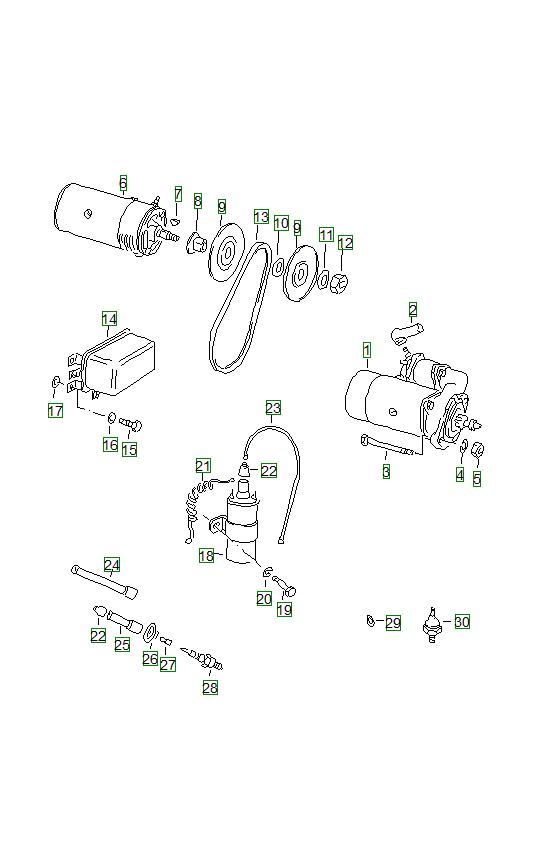

356 — ELECTRICAL-EQUIPMENTENGINE-002
Filtra per variante:
| # | Codice | Descrizione | Qtà | Variante |
|---|---|---|---|---|
| 1 | 616 604 101 00 | STARTEREED 0,5/6 L 18 | 1 | |
| - | 616 602 904 00 | WIPER CONTACTWSK 29 L 1 Z | 1 | |
| - | 616 602 903 00 | SPRINGFORWIPER CONTACTWBF 554/2 X | 1 | |
| 2 | 356 09 616 | PROTECTION CAP | 1 | |
| 3 | 900 074 071 00 | BOLT HEX-HD.M 10 X 115 | 2 | |
| 4 | 900 028 013 01 | SPRING WASHERB 10 | 2 | |
| 5 | 900 076 015 01 | HEXAGON NUTM 10 | 2 | |
| 6 | 547 603 101 00 | DC GENERATORLJ/GE 160/6-2500 L 10 | 1 | |
| - | 616 602 901 00 | WIPER CONTACTDSK 2/38 Z | 2 | |
| - | - | SPRINGBOSCHFORWIPER CONTACT | 2 | |
| - | - | ARMATUREBOSCHWITHOUTBALL BEARING | 1 | |
| - | - | HEATING SPIRALFIELD COIL1 | 1 | |
| - | - | HEATING SPIRALFIELD COIL2 | 1 | |
| 7 | 900 118 003 00 | WOODRUFF KEY3 X 5 | 1 | |
| 8 | 547 09 304 | HUB | 1 | |
| 9 | 547 09 301 | PULLEY | 2 | |
| 10 | 547 09 302 | WASHER | 4 | |
| 11 | 539 09 314 | WASHER | 4 | |
| 12 | 547 09 303 | HEXAGON NUT | 1 | |
| 13 | 547 09 305 | NARROW V-BELT | 1 | |
| 14 | 616 603 201 00 | REGULATOR SWITCH | 1 | |
| 15 | 900 014 005 02 | CHEESE-HD. SCREWM 5 X 15 | 3 | |
| 16 | 900 027 012 01 | LOCK RINGB 5 | 3 | |
| 17 | 900 025 003 02 | WASHER5,3 | 3 | |
| 18 | 547 602 101 00 | IGNITION COILTK 6 A 5 | 2 | |
| 19 | 900 075 027 02 | BOLT HEX-HD.M 8 X 20 | 4 | |
| 20 | 900 027 015 00 | LOCK RINGB 8 | 4 | |
| (21) | 692 609 521 00 | LINESETCOMPRISING: | 1 | |
| - | 692 609 531 00 | LINEI1100 MM | 1 | |
| - | 692 609 531 01 | LINEA1020 MM | 1 | |
| 22 | 539 09 312 | CAP | 10 | |
| (23) | 692 609 501 00 | IGNITION CABLESETIGNITION COILCOMPRISING: | 2 | |
| - | 692 609 511 00 | IGNITION CABLEA 1930 MM | 1 | |
| - | 692 609 511 01 | IGNITION CABLEI 1870 MM | 1 | |
| - | 692 609 511 02 | IGNITION CABLEA 2610 MM | 1 | |
| - | 692 609 511 03 | IGNITION CABLEI 21175 MM | 1 | |
| - | 692 609 511 04 | IGNITION CABLEA 31450 MM | 1 | |
| - | 692 609 511 05 | IGNITION CABLEI 3685 MM | 1 | |
| - | 692 609 511 06 | IGNITION CABLEA 41100 MM | 1 | |
| - | 692 609 511 07 | IGNITION CABLEI 4945 MM | 1 | |
| - | 692 609 511 08 | IGNITION CABLEHIGH TENSIONIGNITION COILDISTRIBUTOR | 1 | |
| - | 692 609 511 09 | IGNITION CABLEHIGH TENSION920 MMIGNITION COILDISTRIBUTOR | 1 | |
| 24 | 547 09 210 | SPARK PLUG SOCKETLONGKEEA 6 J 3 Z | 4 | |
| 25 | 547 09 211 | SPARK PLUG SOCKETSHORTKEEA 3 J 2 Z | 4 | |
| 26 | 539 09 201 | RUBBER CAP | 8 | |
| 27 | 547 09 222 | KNURLED NUT | 8 | |
| (28) | 547 09 219 2 | SPARK PLUGN3 1200 | 8 | |
| 29 | 547 09 224 | O-RING | 12 | |
| - | 999 651 117 01 | CABLE HOLDER | 4 | |
| - | 999 702 029 50 | CABLE GUIDE | 4 | |
| 30 | 692 613 571 00 | OIL PRESSURE SWITCH | 1 |
