Porsche 356 / Rear-Axle

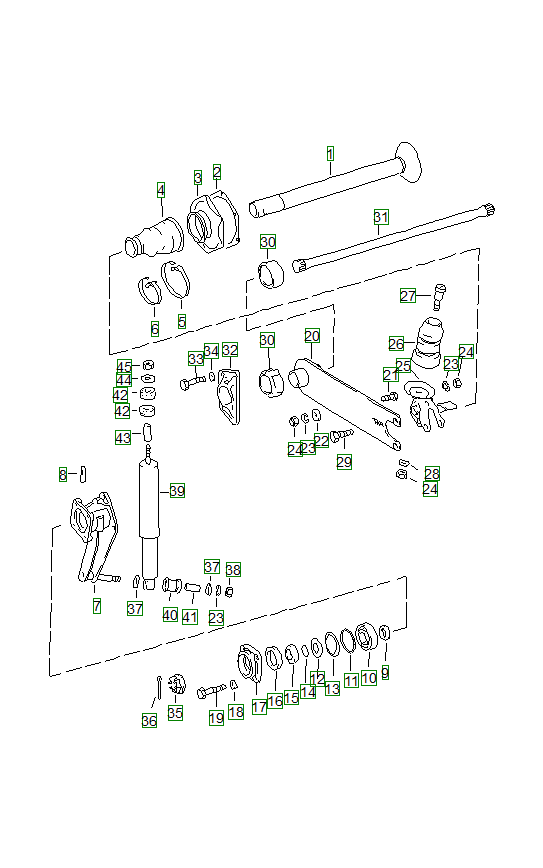

356 — REAR-AXLE-001

356 — REAR-AXLE-001
356 — REAR-AXLE-001
Filtra per variante:
# Codice Descrizione Qtà Variante
1 644 331 201 00 REAR AXLE CROSS TUBE 2
2 356 34 143 GASKET0,30 MM X
(2) 644 331 931 01 GASKET0,25 MM X
(2) 644 331 931 00 GASKET0,10 MM X
3 644 331 221 00 HOUSINGUSE ALSO:SEALING RING111.501.139 2
- 900 016 003 01 HALF-ROUND SCREWAM 4 X 18 12
- 900 025 002 01 WASHER4,3 24
- 900 076 003 01 HEXAGON NUTM 4 12
4 644 34 191 BOOT 2
(4) 644 34 191 1 BOOTGESCHLITZT 2
5 999 512 103 02 RETAINING CLIPFOR644. 34.191.1 2
(5) 999 511 045 02 HOSE CLIPFOR644. 34.191 2
6 999 512 102 02 RETAINING CLIPFOR644. 34.191.1 2
(6) 999 511 044 02 HOSE CLIPFOR644. 34.191 2
7 644 34 011 BEARING FLANGE /L 1
(7) 644 34 012 BEARING FLANGE /R 1
8 900 090 002 00 DOWEL PIN10 X 40 2
9 644 331 231 00 SPACER 2
10 900 052 006 00 BALL BEARING 2
11 356 34 144 SEALING RING 2
12 356 34 402 WASHER 2
13 356 34 410 SHIM X
14 356 34 142 WASHER 2
15 356 34 401 INTERMEDIATE RING 2
16 644 34 192 SEALING RING 2
17 644 331 251 00 HOUSING 2
18 900 028 012 01 SPRING WASHERB 10 8
19 999 074 006 01 FASTENING SCREW 8
20 644 34 104 STRUT 2
21 900 082 005 01 BOLT HEX-HD.M 12 X 1,5 X 22 2
22 356 34 153 WASHER 2
23 900 028 014 01 SPRING WASHERB 12 8
24 900 076 016 02 HEXAGON NUTM 12 X 1,5 8
25 644 34 023 BRACKET /L 1
(25) 644 34 024 BRACKET /R 1
26 644 34 206 RUBBER STOP 2
27 644 34 205 SHOULDERED BOLT 2
28 900 028 014 01 SPRING WASHERB 12 4
29 900 082 006 01 BOLT HEX-HD.M 12 X 1,5 X 30 6
30 644 333 131 00 RUBBER SLEEVE 4
31 644 333 101 01 TORSION BAR 2
32 644 333 151 00 COVER 2
33 900 074 058 02 BOLT HEX-HD.M 10 X 35 8
34 900 025 008 02 WASHER10,5 8
35 644 332 271 00 CASTLE NUT 2
36 900 021 025 00 COTTER PIN5 X 45 2
37 900 025 009 01 WASHER13 4
38 900 076 016 02 HEXAGON NUTM 12 X 1,5 2
39 644 333 501 13 SHOCK ABSORBER 2
(39) 644 333 501 10 SHOCK ABSORBERRED 2 1600 SCARRERA1500 GS
40 644 41 521 RUBBER MOUNTINGFOR 2
41 644 41 522 BUSHFOR644. 34.501.2 2
(41) 644 343 562 10 BUSHFOR644.333.501.10 2
42 644 333 561 10 RING 4
43 644 333 562 10 BUSH 2
44 644 333 564 10 WASHER 2
45 900 084 013 02 LOCKING NUT 2
