Porsche 914 / Engine

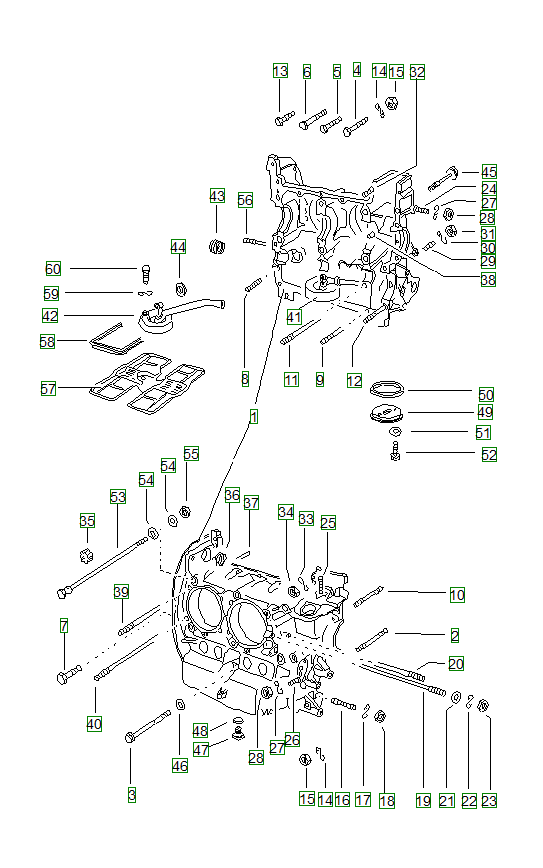

914 — CRANKCASE

914 — CRANKCASE
914 — CRANKCASE
Filtra per variante:
# Codice Descrizione Qtà Variante
(1) 021 101 025 H CRANKCASE 1 914-1,8V
1 923 101 941 00 CRANKCASEUSE ALSO:N 014 532 3N 014 557 1STUDAM 10 A X 92 1 42 914-4/1,7
(1) 923 101 941 00 CRANKCASE 1 914-1,8/2,0
2 N 014 394 2 STUDAM 8 A X 65 1
(2) N 014 577 1 STUDCM 10 A/M 8 X 65OVERSIZE 1
3 N 010 373 2 BOLT HEX-HD.M 8 X 72 1
4 N 010 387 2 BOLT HEX-HD.M 8 X 88 1
5 N 010 361 4 BOLT HEX-HD.M 8 X 65 1
6 N 010 390 1 BOLT HEX-HD.M 8 X 95 1 914-4/1,7914-1,8/2,0
7 900 074 129 02 BOLT HEX-HD.M 8 X 42 1
8 N 014 395 3 STUDAM 8 A X 42 1
(8) N 014 560 1 STUDCM 10 A/M 8 X 42OVERSIZE 1
9 N 014 555 1 STUDAM 8 A X 44 4
(9) N 014 580 1 STUDCM 10 A/M 8 X 44OVERSIZE 4
10 N 014 428 5 STUDAM 8 A X 48 2
(10) N 014 484 5 STUDCM 10 A/M 8 X 48OVERSIZE 2
11 N 014 556 1 STUDAM 8 A X 121 1
(11) N 014 486 2 STUDCM 10 A/M 8 X 125OVERSIZE 1
12 N 014 417 4 STUDAM 8 A X 81 1
(12) N 014 589 1 STUDCM 10 A/M 8 X 78OVERSIZE 1
13 N 010 345 5 BOLT HEX-HD.M 8 X 45 X 22 1
14 N 012 241 11 SPRING WASHERB 8 X 15 16
15 N 011 008 8 HEXAGON NUTM 8 16
16 N 014 532 3 STUDAM 8 A X 32FOROIL PUMP 4
(16) N 014 562 3 STUDCM 10 A/M 8 X 12OVERSIZEFOROIL PUMP 4
17 N 012 241 11 SPRING WASHERB 8 X 15 4
18 N 011 008 8 HEXAGON NUTM 8 4
19 N 014 536 1 STUDAM 6 A X 105FOROIL COOLER 2
(19) N 014 585 1 STUDCM 8 A/M 6 X 105OVERSIZEFOROIL COOLER 2
20 N 014 539 1 STUDAM 6 A X 56FOROIL COOLER 1
(20) N 014 565 1 STUDCM 8 A/M 6 X 56OVERSIZEFOROIL COOLER 1
21 900 025 004 02 WASHERA 6,4 3
22 900 028 008 02 SPRING WASHERB 6 3
23 900 076 010 02 HEXAGON NUTM 6 3
24 N 014 395 3 STUDAM 8 A X 42FORFAN HOUSING 4
(24) N 014 584 1 STUDCM 10 A/M 8 X 43OVERSIZEFORFAN HOUSING 4
25 N 014 398 3 STUDAM 8 A X 27F.IGNITION DISTRIBUTOR 1
26 N 014 400 3 STUDAM 8 A X 35FOROIL FILTERINTERMEDIATE FLANGE 2
(26) N 014 483 2 STUDCM 10 A/M 8 X 38OVERSIZEFOROIL FILTERINTERMEDIATE FLANGE 2
27 N 012 241 11 SPRING WASHERB 8 X 15 7
28 N 011 008 8 HEXAGON NUTM 8 7
29 N 014 542 1 STUDAM 6 A X 21FORTHERMOSTATSUPPORT 2
(29) N 014 478 1 STUDCM 8 A/M 6 X 21OVERSIZEFORTHERMOSTATSUPPORT 2
30 900 028 008 02 SPRING WASHERB 6 2
31 900 076 010 02 HEXAGON NUTM 6 2
32 N 014 545 2 STUDAM 6 A X 36 2
(32) N 014 591 1 STUDCM 8 A/M 6 X 34OVERSIZE 2
33 900 028 008 02 SPRING WASHERB 6 2
34 900 076 010 02 HEXAGON NUTM 6 2
35 021 101 107 VIBRATION DAMPER 6
36 021 101 109 CAP 1
(36) 021 101 109 A PLUGTIMING MARK SENDER 1 914-1,8V/1,8
37 113 101 111 DOWEL PIN8 X 25 2
38 111 101 123 DOWEL PINFORCRANKSHAFT BEARING 5
39 025 101 147 A STUDM 10/M 12 X 1,5 X 172,5UPPERFORCYLINDER HEAD 8
(39) N 021 570 1 STUDCM 14 X 1,5 A/M 10 X 173OVERSIZEUPPERFORCYLINDER HEAD 8
40 021 101 147 A STUDM 10/M 12 X 1,5 X 221,5LOWERFORCYLINDER HEAD 8
(40) N 021 574 1 STUDCM 14 X 1,5 A/M 10 X 222OVERSIZELOWERFORCYLINDER HEAD 8
41 021 101 149 OIL TUBEWITHCOVER PLATEM >> W0 057 460 1 914-4
42 021 101 149 A OIL TUBEWITHCOVER PLATEM >> W0 250 000M AN0 000 001>>M W0 057 461 >>M GB0 000 001>> 1 914-1,7/1,8V914-1,8/2,0
43 113 101 157 C COVERFORCAMSHAFT 1
44 021 101 173 SEALING RINGFOROIL TUBE 1
45 021 101 187 BOLT HEX-HD.M 8 X 113 1
46 021 101 189 SEALING RING8,2 X 16 1
47 021 101 195 DRAIN PLUG 1
48 N 013 805 1 SEALING RINGC 12 X 18 1
49 021 101 267 COVERFOR OIL SUMP 1 914-4/1,7914-1,8V/1,8
(49) 039 101 267 COVERFORTEMPERATURE SENSORFOR OIL SUMPM AN0 000 001>>M W0 170 001 >>M >> W0 250 000M GB0 000 001>> 1 914-1,7/1,8V914-1,8/2,0
50 021 101 269 A SEALING RINGFORCOVER 1
(50) 039 101 287 GASKETFORTEMPERATURE SENSORM AN0 000 001>>M W0 170 001 >>M >> W0 250 000M GB0 000 001>> 1 914-1,7/1,8V914-1,8/2,0
51 N 013 803 2 SEALING RINGC 6 X 10 2
52 N 010 210 13 BOLT HEX-HD.M 6 X 10 K 2
- 039 101 275 PROTECTION CAPTEMPERATURE SENSORFORCOVEROIL SUMPM AN0 000 001>>M W0 170 001 >>M >> W0 250 000M GB0 000 001>> 1 914-1,7/1,8V914-1,8/2,0
- 039 101 283 CABLE HOLDERTEMPERATURE SENSORM AN0 000 001>>M W0 170 001 >>M GB0 000 001>> 2 914-1,7/1,8V914-1,8/2,0
53 021 101 145 B BOLT HEX-HD.M 10 X 125 X 113 6
54 021 101 129 WASHER10,2 X 22 12
55 021 101 131 E HEXAGON NUTM 10 X 1,25 6
56 N 014 557 1 STUDAM 10 A X 92FORENGINE SUSPENSION 2
(56) N 014 588 1 STUDCM 12 X 1,5 A/M 10 X 92OVERSIZEFORENGINE SUSPENSION 2 914-4/1,7914-1,8V/2,0
57 022 101 553 COVER PLATEM W0 057 461 >> 1
58 022 101 559 GASKETFORCOVER PLATEM W0 057 461 >>M AN0 000 001>>M >> W0 250 000M GB0 000 001>> 4
59 900 028 008 02 SPRING WASHERB 6 1
60 N 010 210 13 BOLT HEX-HD.M 6 X 10 K 1
