Porsche 914 / Engine

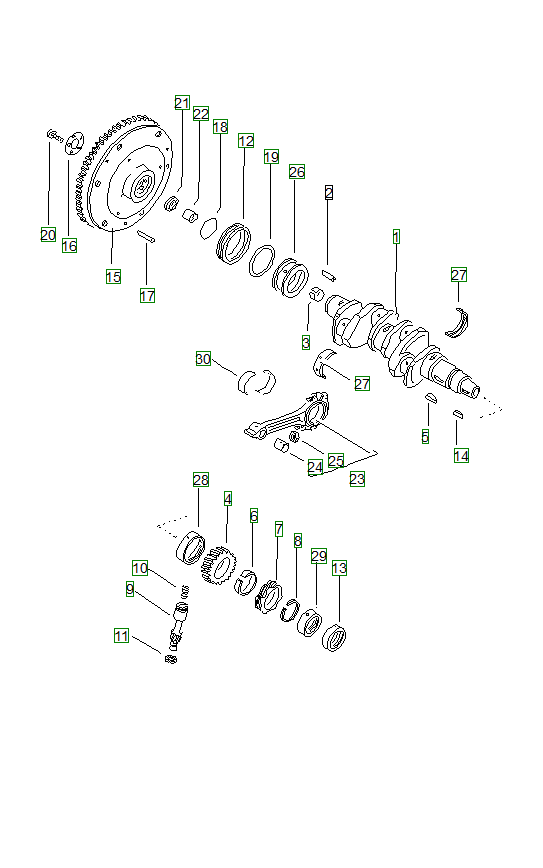

914 — CRANKSHAFT-914

914 — CRANKSHAFT-914
914 — CRANKSHAFT-914
Filtra per variante:
# Codice Descrizione Qtà Variante
1 021 105 101 CRANKSHAFT 1 914-4/1,7914-1,8V/1,8
(1) 039 105 101 A CRANKSHAFT 1 914-2,0
2 N 013 309 1 TENSION SLEEVE4,5 X 16 1
3 022 105 159 SPACER SLEEVE 1
4 021 105 209 A GEAR 1
5 111 105 213 WOODRUFF KEYFORGEAR 1
6 113 105 219 INTERMEDIATE RING 1
7 111 105 223 DISTRIBUTORDRIVE GEAR 1
8 111 105 227 LOCK RINGFORDISTRIBUTORDRIVE GEAR 1
9 021 105 231 DISTRIBUTORDRIVE SHAFT 1
10 111 105 233 SPRING 1
11 021 105 235 WASHER1,3 MM 1
12 029 105 245 B SEALING RING$ 95 MM 1
13 021 105 247 A SEALING RING$ 62 MM 1
14 N 012 708 2 WOODRUFF KEY4 X 5 1
15 022 105 273 A FLYWHEEL 1
16 021 105 275 WASHER 1
17 N 013 197 1 DOWEL PIN6 X 18 3
18 021 105 279 SEALING RING 1
19 021 105 281 SPACER0,30 MM 1
(19) 021 105 283 SPACER0,32 MM 1
(19) 021 105 285 SPACER0,34 MM 1
(19) 021 105 287 SPACER0,36 MM 1
(19) 021 105 289 SPACER0,38 MM 1
(19) 021 105 291 SPACER0,24 MM 1
20 N 014 336 1 BOLT HEX-HD.M 12 X 1,5 X 25SELFLOCKING 5
21 111 105 311 SEALING RING 1
22 111 105 313 A NEEDLE BEARING 1
23 022 105 401 CONNECTING ROD 4 914-4/1,7
022 105 401 041 BLACK
022 105 401 084 WHITE
(23) 022 105 401 CONNECTING ROD 4 914-1,8V/1,8
022 105 401 041 BLACK
022 105 401 084 WHITE
(23) 039 105 401 CONNECTING ROD 4 914-2,0
039 105 401 041 BLACK
039 105 401 084 WHITEM GB0 000 001>>
24 113 105 427 HEXAGON NUT 8
25 021 105 431 A BUSH - CONNECTING ROD 4
26 021 105 501 B CRANKSHAFT BEARING1OUTER$ 70 MM 1
(26) 021 105 507 B CRANKSHAFT BEARING1OUTER$ 70 MMUNDERSIZE 0,25 MM 1
(26) 021 105 513 A CRANKSHAFT BEARING1OUTER$ 70 MMUNDERSIZE 0,50 MM 1
(26) 021 105 519 A CRANKSHAFT BEARING1OUTER$ 70 MMUNDERSIZE0,75 MM 1
27 021 105 531 E BEARING SHELLFORCRANKSHAFT BEARING2OUTER$ 70 MM 2
(27) 021 105 537 E BEARING SHELLFORCRANKSHAFT BEARING2OUTER$ 70 MMUNDERSIZE 0,25 MM 2
(27) 021 105 543 E BEARING SHELLFORCRANKSHAFT BEARING2OUTER$ 70 MMUNDERSIZE 0,50 MM 2
(27) 021 105 549 E BEARING SHELLFORCRANKSHAFT BEARING2OUTER$70 MMUNDERSIZE0,75 MM 2
28 021 105 561 A CRANKSHAFT BEARING3OUTER$ 70 MM 1
(28) 021 105 567 A CRANKSHAFT BEARING3OUTER70 MMUNDERSIZE 0,25 MM 1
(28) 021 105 573 A CRANKSHAFT BEARING3OUTER$ 70 MMUNDERSIZE 0,50 MM 1
(28) 021 105 579 A CRANKSHAFT BEARING3OUTER$ 70 MMUNDERSIZE0,75 MM 1
29 021 105 591 CRANKSHAFT BEARING4OUTER$ 50 MM 1
(29) 021 105 597 CRANKSHAFT BEARING4OUTER$ 50 MMUNDERSIZE 0,25 MM 1
(29) 021 105 603 CRANKSHAFT BEARING4OUTER$ 50 MMUNDERSIZE 0,50 MM 1
(29) 021 105 609 CRANKSHAFT BEARING4OUTER$ 50 MMUNDERSIZE0,75 MM 1
30 021 105 701 A CONNECTING RODBEARING SHELL 8 914-4/1,7914-1,8V/1,8
(30) 039 105 701 BEARING SHELL 8 914-2,0
(30) 021 105 707 A CONNECTING RODBEARING SHELLUNDERSIZE 0,25 MM 8 914-4/1,7914-1,8V/1,8
(30) 039 105 707 BEARING SHELLUNDERSIZE 0,25 MM 8 914-2,0
(30) 021 105 713 A CONNECTING RODBEARING SHELLUNDERSIZE 0,50 MM 8 914-4/1,7914-1,8V/1,8
(30) 039 105 713 BEARING SHELLUNDERSIZE 0,50 MM 8 914-2,0
(30) 021 105 719 A CONNECTING RODBEARING SHELLUNDERSIZE0,75 MM 8 914-4/1,7914-1,8V/1,8
(30) 039 105 719 BEARING SHELLUNDERSIZE0,75 MM 8 914-2,0
